Hyundai Tucson: Blower / Climate Control Air Filtar
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
• Take care not to bend or scratch the trim and panels.
1.Remove the glove box.(Refer to Body (Interior and Exterior) - "Glove Box")
2.Remove the filter cover (A) by pressing the knob.

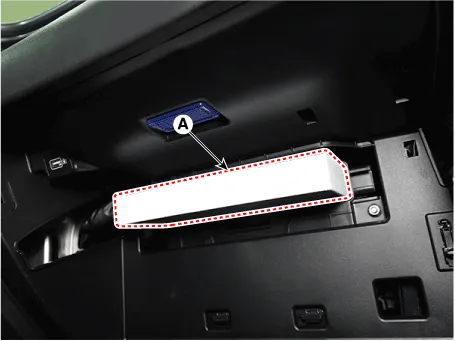

3.Replace the air filter (A) with a new one according to the direction of air filter.
• To remove the filter easily, press the right side inward then pull out the filter.
• In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
4.Install in the reverse order of removal.
