Hyundai Tucson: Tire Pressure Monitoring System / TPMS Receiver

- Description TPMS Receiver : BCM(body control module) integrated management

1.Mode

(1)Virgin State

• The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.

• In this state, there is no Auto-Location, no sensor wake-up, no sensor monitoring and no DTC monitoring..

• The state indicates that platform specific parameters must be written to the receiver and that sensors are un-learned.

(2)Normal State

• In order for tire inflation state and DTC monitoring to occur, the receiver must be in this state.

• In this state, automatic sensor location / learning is enabled.

2.Overview

• Learn TPMS sensor for under inflation monitoring automatically.

• Uses sensor information, distance travelled, background noise levels, Auto-learn status, short / open circuit output status, vehicle battery level, internal receiver states to determine if there is a system or a vehicle fault.

1.General Function

• Auto-learn takes place only once per Ignition cycle.

• On successful completion, 4 road wheel sensor ID's are latched into memory for monitoring.

• Until Auto-learn completes, previously learned sensors are monitored for under inflation / leak warnings.

2.General Conditions to Learn New Sensors:

• Receiver must determine that it is confident that sensor is not temporary:a. Uses vehicle speed.b. Uses confidence reduction of previously learned sensors.

• Typical time at driving continuously over 15.5 mph(25 kph) to learn a new sensor is up to 20 minutes.

3.General Conditions to Un-Learn a sensor that is removed :

• It takes less than 20 minutes at 15.5 mph(20-30 kph).

• Confidence reduction is dependent on time which vehicle is driven at speed greater than or equal to 12.4 mph(20-30 kph).

1. Receiver


2. TPMS Sensor

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

2.Remove the glove box.(Refer to Body - "Glove Box")

3.Remove the heater control unit.(Refer to Heating,Ventilation And Air Conditioning - "Heater Control Unit")

4.Remove the integrated Body control Unit (IBU) (A) after loosening the mounting bolts and nuts.

5.Remove the integrated Body control Unit (IBU) (A) after disconnecting the connector.

1.To install, reverse the removal procedures.

Smart Key Unit

1.(Refer to Body Electrical System - "Smart Key Diagnostic")

Smart Key Switch

1.(Refer to Body Electrical System - "Smart Key Diagnostic")

1.Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of driver's seat, and then turn on the ignition to activate the diagnostic instrument.

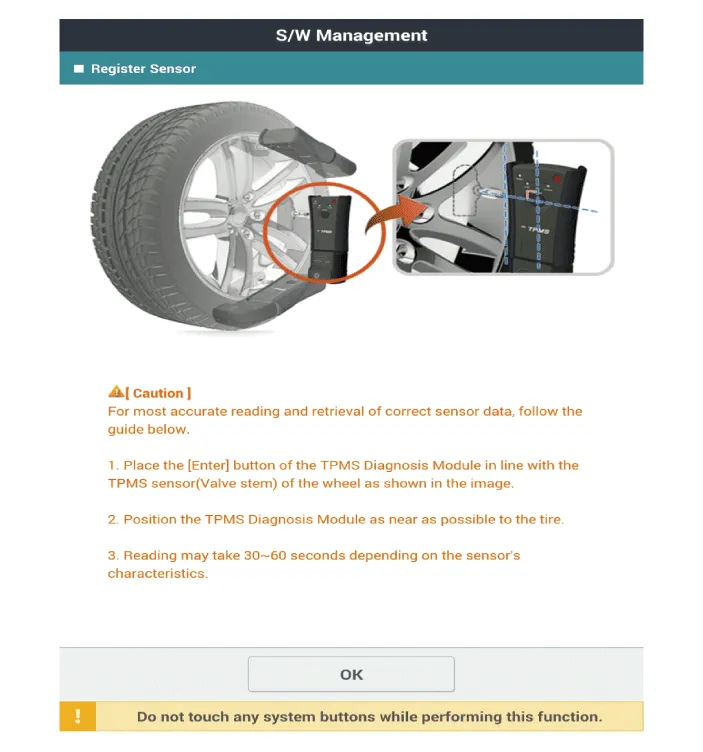

2.In the diagnostic tool Vehicle Type Selection menu, select "Vehicle Type" and "TPMS" System, and then opt for "OK."

• Check that Write ID and Read ID are the match.

• After successfully registering the sensor, perform "Sensor Wireless Information" to confirm that the sensor operates properly.

• Each entry must be checked for normal operation of each sensor.

• After replacing the tires or sensors, check for proper operation of sensor after sensor registration process.
