Hyundai Tucson: Panoramic Sunroof / Tilt Open/Close

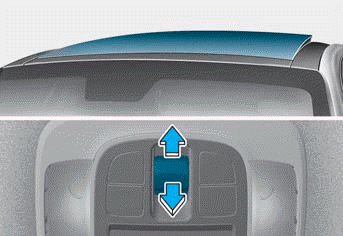

  • Push the sunroof switch up to tilt the sunroof glass open. If the power sunshade is closed, the sunshade opens first and then the sunroof tilts.
  • Push the sunroof switch forward. The sunroof glass automatically closes.

To stop the sunroof movement at any point, push the sunroof switch in any direction.

    Power Sunshade
    Use the power sunshade to block direct sunlight coming through the sunroof glass. Push the sunroof switch rearward to the first detent position, the power sunshade automatically slides ...

    Slide Open/Close
    Push the sunroof switch rearward. The sunroof glass slides open. If the power sunshade is closed, the power sunshade opens first and then the sunroof glass opens. Push the sunroof ...
