Type A
Type B

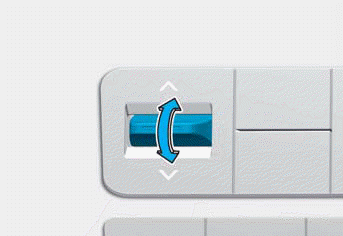

The temperature setting increases when you toggle up or press the UP arrow on the touchscreen (if equipped).
The temperature setting decreases when you toggle down or press the DOWN arrow on the touchscreen (if equipped).
Adjusting the temperature equally
Press the SYNC button (indicator light ON) to adjust the driver and passenger side temperature equally.
Adjusting the temperature individually
Press the SYNC button (indicator light OFF) again to adjust the driver and passenger side temperature individually.
Temperature conversion
If the battery has been discharged or disconnected, the temperature mode display is reset to Fahrenheit.
To change the temperature unit from °C to °F or °F to °C:
- Setup > Unit > Temperature Unit >
°F/°C (for cluster type)
- Setup > General Settings > Unit >
Temperature Unit > °C/°F (for
infotainment system type)
The temperature unit on both the cluster display and the climate control information screen is changed.
Information
Hyundai Tucson (NX4) 2022-2025 Service Manual: Schematic Diagrams
- Schematic Diagrams
Harness Connector
CONNECTOR NAMEPIN NUMBERNAMEFUNCTION
BATTERY1B +BATTERY +
2GNDBATTERY -
TORQUE1TORQUE2TORQUE1_SUB
&2ANGLE2PWM2
ANGLE3TORQUE4TORQUE2_SUB
SENSOR4POWER2SENSOR POWER2
5TORQUE3TORQUE2_MAIN
6POWER1SENSOR POWER1
7GND1GND1
8TORQUE1TORQUE1_MAIN
...
Hyundai Tucson (NX4) 2022-2025 Owner's Manual: Curtain airbags
Curtain airbags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in
certain side impact collisions.
The curtain airbags are designed to
deploy ...
