Hyundai Tucson: Rear Door / Rear Door Trim

- Components Location

1. Rear door trim

- Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Disconnect the negative ( - ) battery terminal.

2.Remove the rear door delta inner cover (A).

3.Loosen the mounting screw, remove the rear door trim (A).

4.Separate the rear door inside handle cage (A).

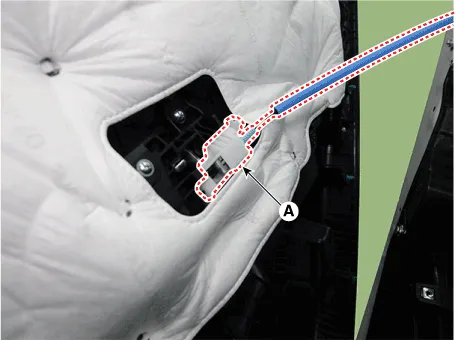

5.Disconnect the window switch connector (A).

6.To install, reverse the removal procedure.

• Be sure to replace the clip (fastener) when re-installing after detaching the door trim. ※ In case of non-exchange, watertightness / exit problems may occur

Water tightness prevention

• Make sure the connector is connected properly.

• Make sure the door locks / unlocks and opens / closes properly.

• Replace any damaged clips (or pin-type retainers).

• Make sure the glass is operated properly.

Repair procedures

- Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace it if necessary. 1.Remove the rear door trim.(Refer to Rear Door - "Re ...

Rear Door Inside Handle

- Replacement 1.Disconnect the negative ( - ) battery terminal. 2.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim") 3.Loosen the mounting screws and remove the rear door inside ...
