[BCW, BCA]
Items | Blind-Spot Collision Warning (BCW) | Blind-Spot Collision- Avoidance Assist (BCA) | Blind-Spot Collision- Avoidance Assist (BCA) |
※Parallel Exit | |||
Rated voltage | DC 12V | ||
Operating voltage | 9V ~ 16V | ||
Operating speed | 20 ㎞/h ~ 255 ㎞/h | 60 ㎞/h ~ 200 ㎞/h | 0 ㎞/h ~ 3 ㎞/h |
Sensible distance | 70m | 60m | |
Frequency | 77 GHz | ||
Numbers | 2 EA |
[RCCW, RCCA]
Items | Rear Cross-Traffic Collision Warning System (RCCW) | Rear Cross-Traffic Collision- Avoidance Assist (RCCA) |
Rated voltage | DC 12V | |
Operating voltage | 9V ~ 16V | |
Operating speed | 0 km/h ~ 8 km/h | 0.1 km/h ~ 8 km/h |
Sensible distance | 25m | |
Curvature radius | - | |
Frequency | 77 GHz | |
Numbers | 2 EA |
[SEW]
Items | Safe Exit Warning (SEW) |
Rated voltage | DC 12V |
Operating voltage | 9V ~ 16V |
Operating speed | 0 km/h ~ 3 km/h |
Sensible distance | 30m |
Curvature radius | - |
Frequency | 77 GHz |
Numbers | 2 EA |

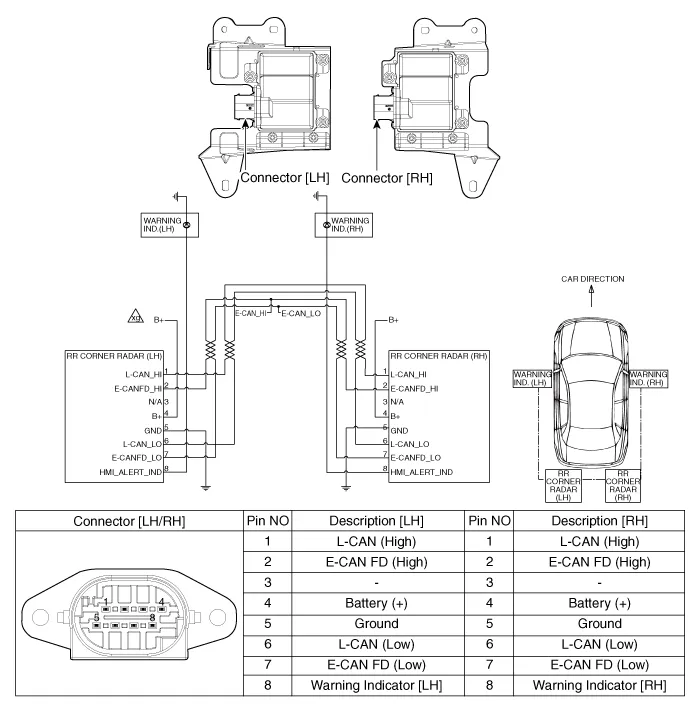

1.Disconnect the negative (-) battery terminal.
2.Remove the rear bumper assembly.(Refer to Body - "Rear Bumper Assembly")

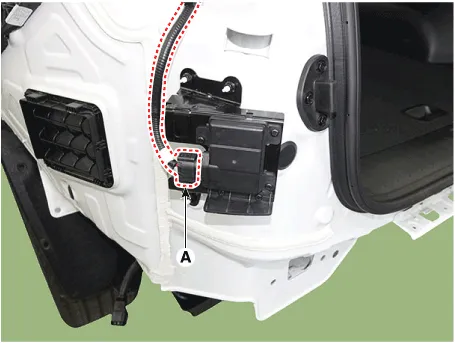

3.Disconnect the rear corner radar connector (A).

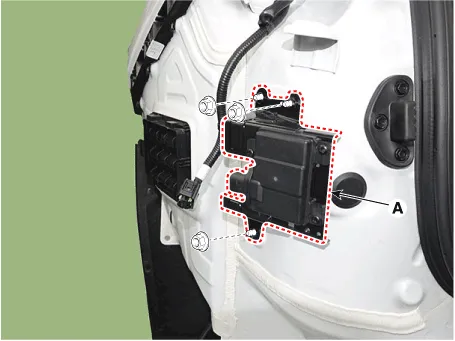

4.Loosen the mounting nuts and remove the rear corner radar unit (A)
• Be careful not to damage the bracket when removing the rear corner radar unit.
1.Install the rear corner radar unit and bracket.
Tightening torque : 9.0 - 10.5 N.m (0.92 - 1.07 kgf.m, 6.7 - 7.7 lb-ft)
2.install the rear bumper cover.
3.Connect the negative (-) battery terminal.
• Take care not to confuse left side (master) and right side (slave) unit when installing.
4.Perform "Correcting the Rear Corner Radar Unit Angle" procedures.
5.Perform "Rear Corner Radar Calibration" procedures.
1.After replacing the rear corner radar unit or bracket, with the bumper removed, use the rear corner radar unit correction tool set (special tool : 09985-3T500) to perform angle correction.
• Perform the task on a level place.
• Perform the task after checking the tire pressure.

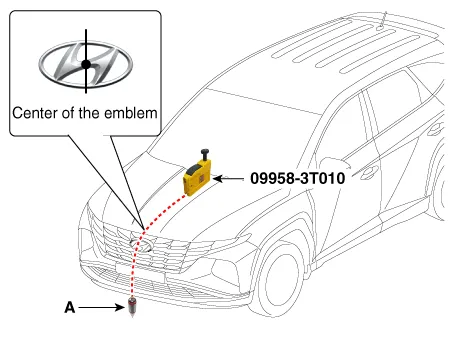

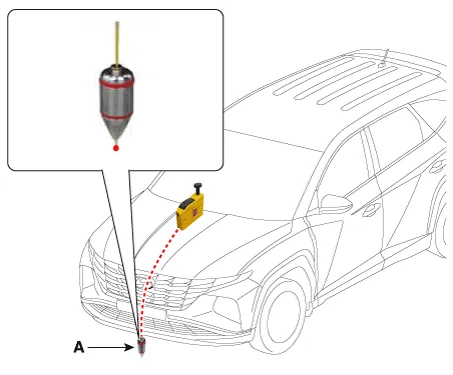

2.Attach a vertical plumb (special tool : 09958-3T010) on the hood, and lower the plumb (A) to the ground so that it passes through the center of the emblem.
3.Marking the center point below the plumb (A).

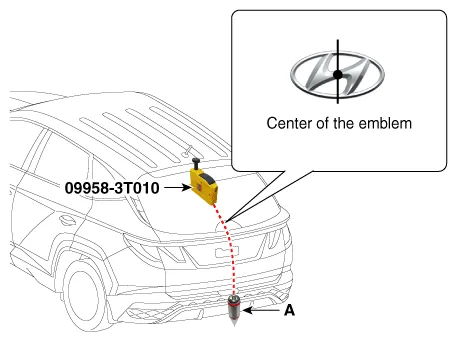

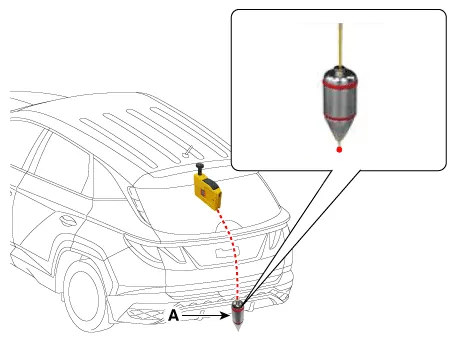

4.Attach a vertical plumb (special tool : 09958-3T010) on the trunk (or tailgate), and lower the plumb (A) to the ground so that it passes through the center of the emblem.
5.Marking the center point below the plumb (A).

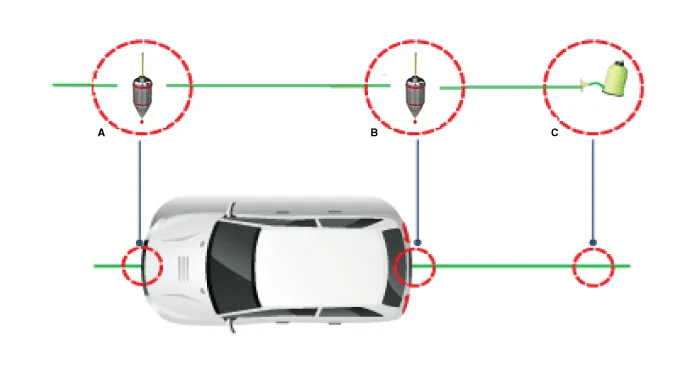

6.Marking the center of vehicle by a string.
1)Pass the string through the bottom of the vehicle from the rear of the vehicle to the front and fix the string to the center point (A) of the front of the vehicle.
2)Fix the string to the point (C) about 1.5 - 2m from the back of the vehicle so that it passes the rear center point (B).

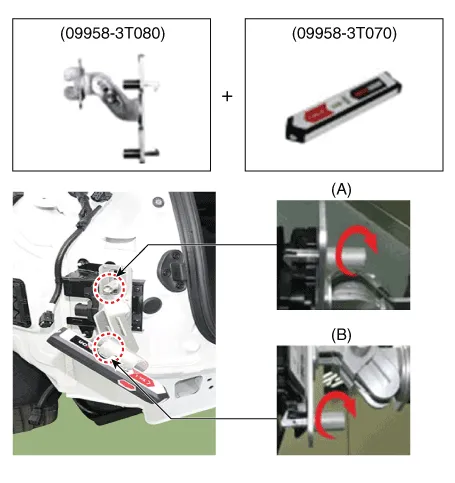

7.Mount the rear corner radar unit fixing adaptor (special tool : 09958-3T080) on the rear corner radar unit and fix the level laser (special tool : 09958-3T070).
• When with the rear corner radar unit cover, remove the cover and then mount the fixing adapter (special tool: 09958-3T080).

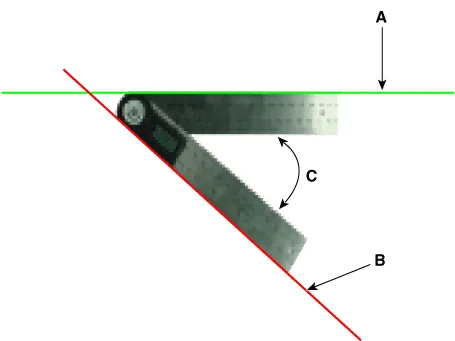

8.Measure the angle (C) between the center line (A) of the angle measuring plate and the horizontal laser beam (B) using a digital protractor (special tool : 09958-3T090).
Horizontal Angle (C): 45° ± 3°

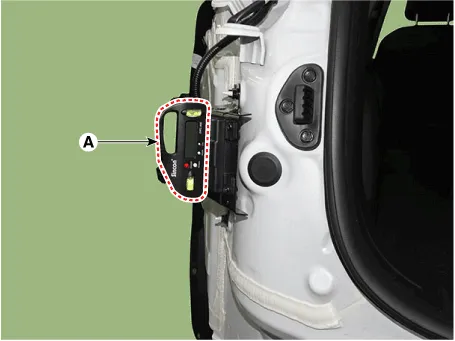

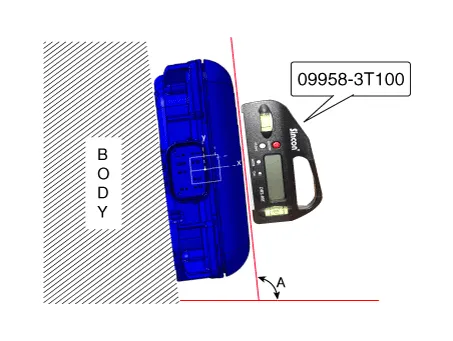

9.Use a digital inclinometer (special tool : 09958-3T100) to measure the vertical angle of the rear corner radar unit.
Vertical Angle : 90° ± 1.5°
• Digital Inclinometer (09958-3T100) Vertical measurement angle (A) : 90° ± 1.5°
10.Measure the horizontal and vertical angles of left and right rear corner radar units. If the measured values deviate from the specified values, insert a washer between the bracket of the rear corner radar unit.
Specified ValuesHorizontal Angle : 45° ± 3°Vertical Angle : 90° ± 1.5°
11.After checking and correcting the rear corner radar unit angle, perform the rear corner radar correction procedure.
1.Rear bumper accident vehicles and vehicles that replaced rear corner radar units must perform rear corner radar unit alignment using Diagnostic tool.
2.Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

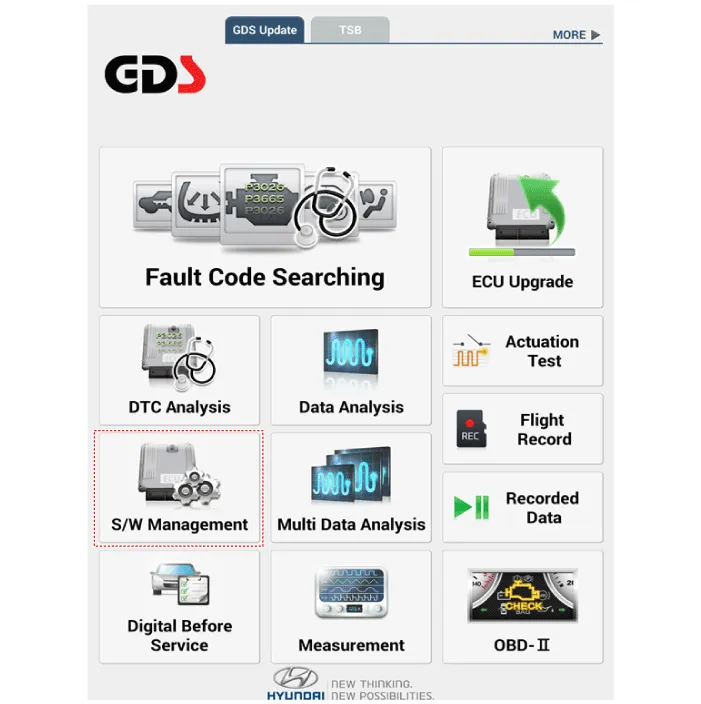

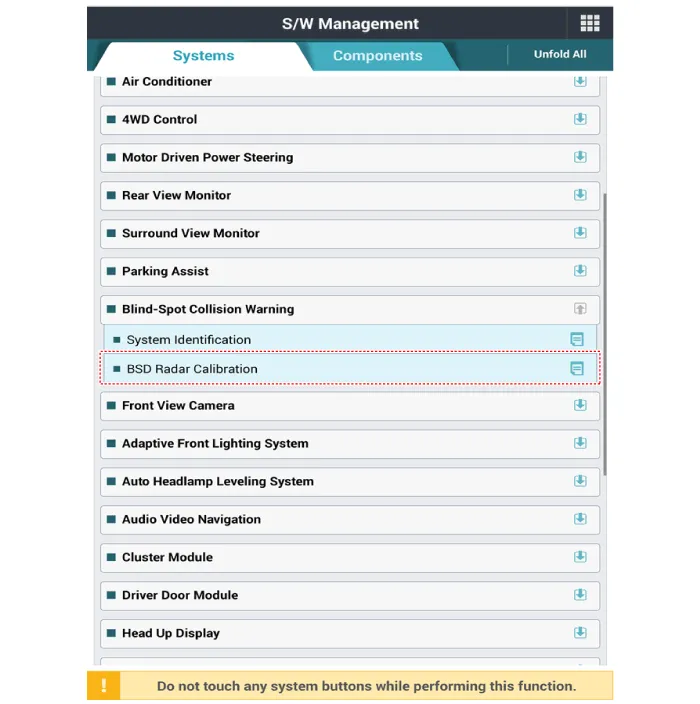

3.Select the 'S/W Management' and 'Car model'.
4.Select "Blind -Spot Collision Warning" and "BSD Radar Calibration".

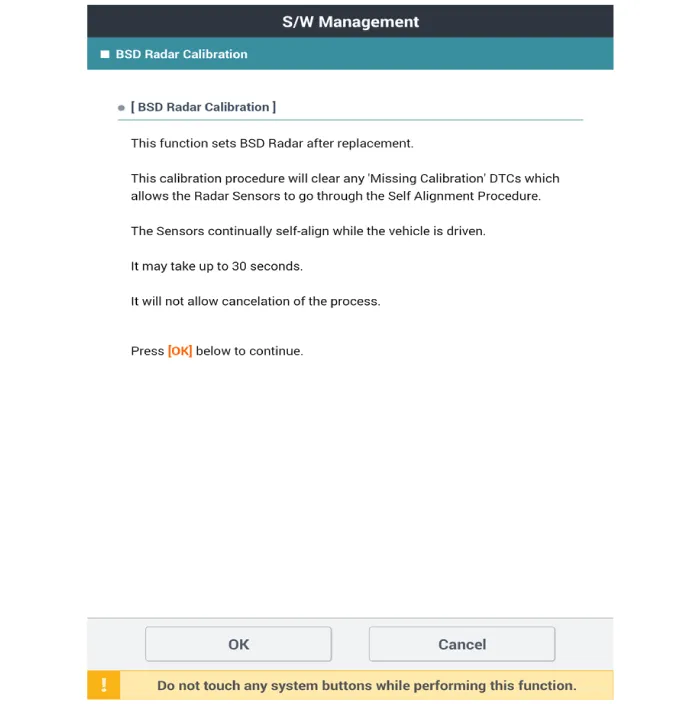

5.Perform the "BSD Radar Calibration" procedure according to the Diagnostic tool screen message.
