Hyundai Tucson: Power Door Locks / Power Door Lock Actuators
1.Remove the front door trim.(Refer to Body - "Front Door Trim")

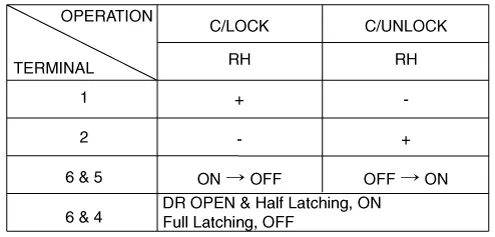

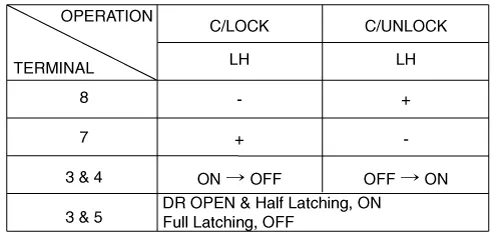

2.Disconnect the connectors from the actuator.
3.Check actuator operation by connecting power and ground according to the table.

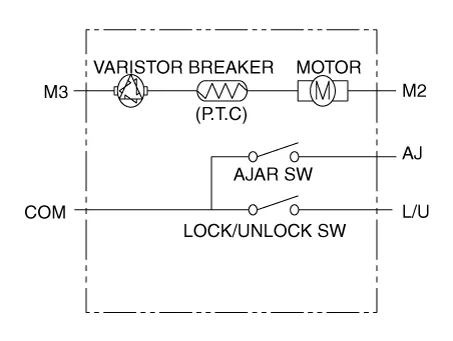

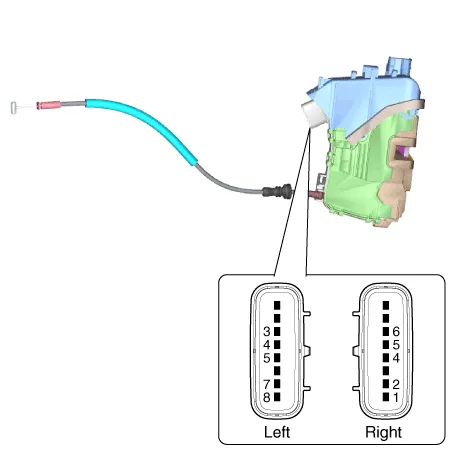

| Pin | Description | |
| Driver | Panssenger | |
| 1 | - | M2 |
| 2 | - | M3 |
| 3 | COM | - |
| 4 | Lock/Unlock switch | AJAR |
| 5 | AJAR | Lock/Unlock switch |
| 6 | - | COM |
| 7 | M3 | - |
| 8 | M2 | - |
1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")
2.Disconnect the connectors from the actuator.

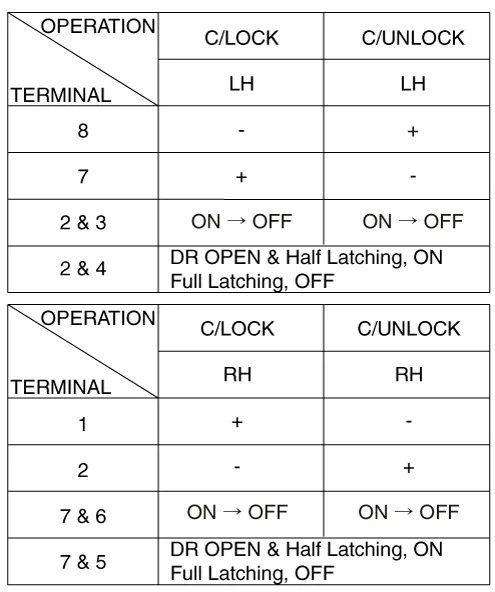

3.Check actuator operation by connecting power and ground according to the table.

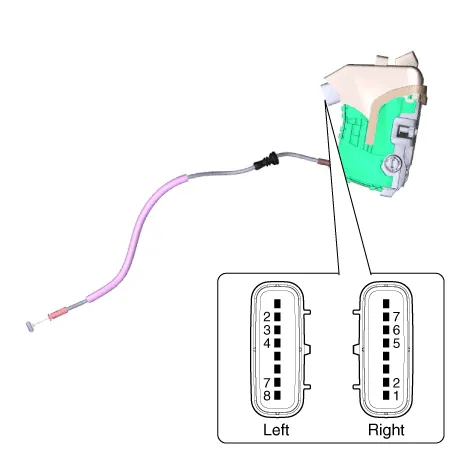

| Pin | Description | |
| Driver | Panssenger | |
| 1 | - | M1 |
| 2 | COM | M2 |
| 3 | Lock/Unlock switch | - |
| 4 | AJAR | - |
| 5 | - | AJAR |
| 6 | - | Lock/Unlock switch |
| 7 | M2 | COM |
| 8 | M1 | - |

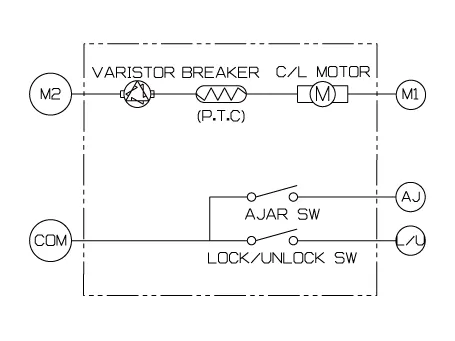

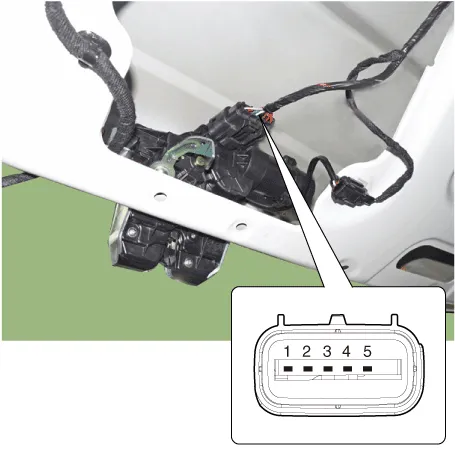

1.Remove the liftlgate trim.(Refer to Body - "Liftgate Trim")
2.Disconnect the connector from the actuator.

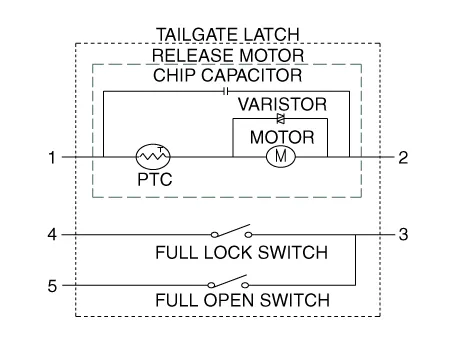

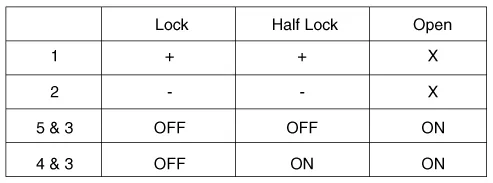

3.Check actuator operation by connecting power and ground according to the table.

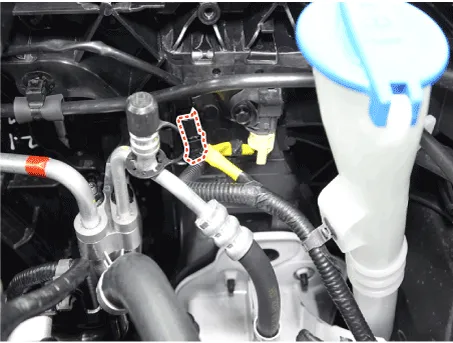

1.Disconnect the hood switch connector (A).

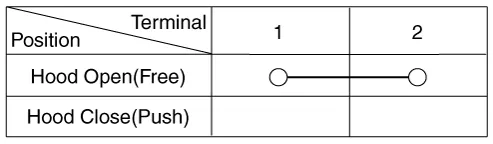

2.Check for continuity between the terminals and ground according to the circuit diagram.
Components and Components Location
- Component Location
1. Liftgate lock actuator2. Driver door moudle (DDM)3. Front door lock actuator4. Rear door lock actuator
...
Power Door Lock Switch
- Inspection
Power Door Lock Switch Inspection
1.1. Check for continuity between the terminals. If there is an abnormality, replace the switch.
Diagnosis with Diagnostic Tool
1.In the body ...
