Hyundai Tucson: Convenience Features / Interior Lights
WARNING
Do not use the interior lights when driving in the dark. The interior lights may obscure your view and result in a collision.
Do not use the interior lights for extended periods when the vehicle is turned off. Otherwise, the battery discharges.
Interior Lights AUTO OFF
The interior lights automatically go off about 10 minutes after the vehicle is turned off and the doors are closed. If a door is opened, the light go off 40 minutes after the vehicle is turned off. If the doors are locked by the remote key or smart key and the vehicle enters the armed stage of the theft alarm system, the lights go off five seconds later.
Front Lights
.png)
Map lamp 1 (.png)
):
Touch either button to turn on or off the map lamp. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.
Door lamp 2 (.png)
):
The front or rear room lamps come on when the front or rear doors are opened. When doors are unlocked by the remote key or smart key, the front and rear lamps come on for about 30 seconds as long as any door is not opened. The front and rear room lamps go out gradually after about 30 seconds when the door is closed. However, if the ignition switch is in the ON position or all doors are locked, the front and rear lamps turn off. If a door is opened with the ignition switch in the ACC or OFF position, the front and rear lamps stay on for about 20 minutes.

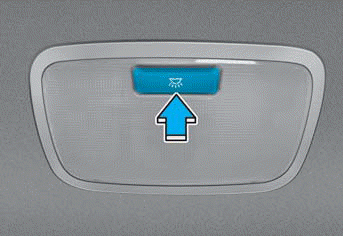

Room lamp 3 (.png)
):
Press the button to turn on the room lamp for the front and rear seats.

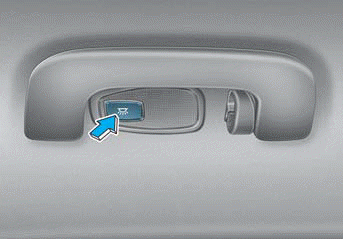

Rear Room Lamps
.png)
Type A
.png)
Type B
Press this button to turn the room lamps on or off.

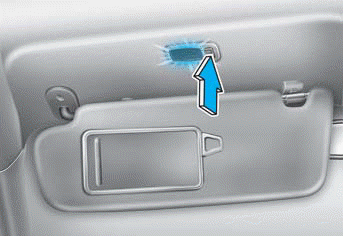

Vanity Mirror Lamp
.png)
Push the switch to turn the lamp on or off.
.png)
: The lamp turns on if this
button
is pressed..png)
: The lamp turns off if this
button is
pressed.
Glove Box Lamp & Cargo Area Lamp

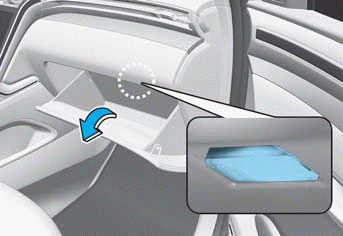

Glove Box Lamp
.png)
The glove box lamp turns on when the glove box is opened.

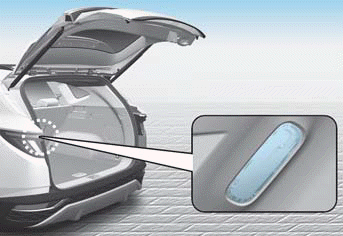

Cargo Area Lamp
.png)
The cargo area lamp turns on when the liftgate is opened and off when the liftgate is closed.
Turn Signals and Lane Change
Signals
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position A .
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn sign ...
