Hyundai Tucson: Fuses / Instrument Panel Fuse Replacement

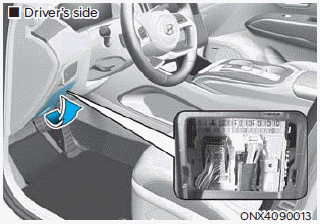

1. Turn off the vehicle.

2. Turn off all other switches.

3. Open the fuse panel cover.

4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

5. Pull the suspected tool straight out. Use the removal tool

    Fuses
    A vehicle’s electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in ...

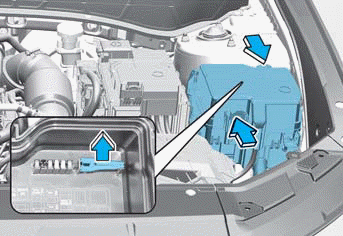

    Engine Compartment Panel Fuse Replacement
    Blade fuse/Cartridge fuse 1. Turn off the vehicle. 2. Turn off all other switches. 3. Remove the fuse panel cover by pressing the tap and pulling up. 4. Refer to the label on the inside of t ...
