Hyundai Tucson: SRSCM / Front Impact Sensor (FIS)

- Description

• The front impact sensors (FIS) are installed on the upper of the side panel in Front End Module (FEM). They are remote sensors that detect acceleration due to a collision at their mounting locations.

• The primary purpose of the Front Impact Sensor (FIS) is to provide an indication of a collition. The Front Impact Sensor(FIS) sends acceleration data to the SRSCM.

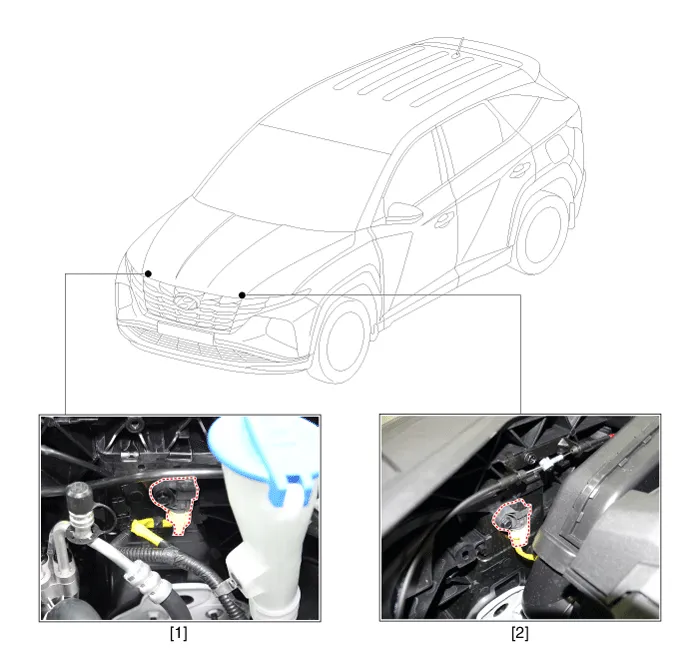

- Components Location

1. Front Impact Sensor (FIS) [RH]
2. Front Impact Sensor (FIS) [LH]


- Removal

1.Disconnect the battery negative terminal.



• After disconnecting the cables, wait at least 3 minutes.

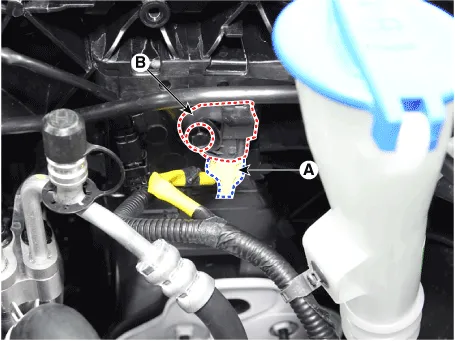

2.Remove the front impact sensor assembly (B) by loosening the bolt after disconnecting the connector (A).

Tightening torque :10.8 - 12.8 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)

- Installation

1.Install in the reverse of the removal.

2.After installing the FIS, confirm proper system operation.



• Switch ON the ignition. The SRS indicator light should turn on for about three-six seconds and then off.

    SRS Control Module (SRSCM)
