Hyundai Tucson: View Modes / Driving Assist mode

LKA/SCC/LFA/HDA

Displays the state of Lane Keeping Assist, Smart Cruise Control, Lane Following Assist and Highway Driving Assist.

For more information, refer to each system information in Chapter 7.

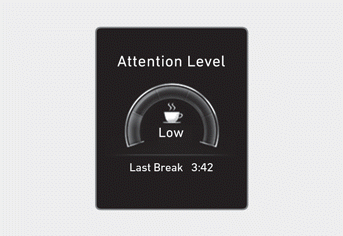

Driver Attention Warning

Displays the state of Driver Attention Warning (DAW).

For more information, refer to the “Driver Attention Warning (DAW)” section in Chapter 7.

Driving force distribution (AWD)

Displays information related to AWD driving force distribution.

If the vehicle is in AWD lock state, this mode does not appear.

For more information, refer to the "4 Wheel Drive (AWD)" section in Chapter 6.

Tire Pressure

For more information, refer to the "Tire Pressure Monitoring System (TPMS)" section in Chapter 8.

    Turn By Turn (TBT) mode
    Turn-by-turn navigation and distance/ time to destination appear when Turn by Turn mode is selected. ...

    Master warning mode
    The Master Warning Light illuminates if one or more of the following occurs: Forward Collision-Avoidance Assist malfunction (if equipped) Forward Collision-Avoidance Assist radar block ...
