To set cruise speed
1. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).
2. Press the Driving Assist ()
button
at the desired speed. The set speed
and Cruise (
) indicator light
illuminates on the instrument cluster.
3. Release the accelerator pedal. Vehicle speed maintains the set speed even when the accelerator pedal is not depressed.
Information
The vehicle speed may slow down or speed up while driving uphill or downhill.

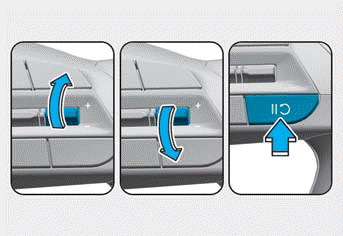

To increase set speed
To temporarily accelerate
If you want to accelerate temporarily when Cruise Control is on, depress the accelerator pedal.
To return to the set speed, take your foot off the accelerator pedal.
If you push the + switch up or - switch down at a higher speed, the cruising speed is set to the higher speed.
To decrease set speed
WARNING
If you need to slow down quickly to avoid a collision, depress the brake pedal as needed.
To temporarily cancel Cruise Control
Cruise Control cancels when:
The set speed turns off but the Cruise
() indicator light will stay on.
NOTICE
If Cruise Control cancels during a situation not listed above, have the vehicle inspected by an authorized HYUNDAI dealer.
To resume Cruise Control
WARNING
Your vehicle speed may rapidly increase
or decrease when you press the
button.
To turn off Cruise Control
Press the Driving Assist ()
button to
to turn off Cruise Control. The Cruise
(
) indicator light goes off.
Always press the Driving Assist ()
button to turn off Cruise Control when
not in use.
Information
If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Cruise Control and turn on Manual Speed Limit Assist.
WARNING
To prevent serious injury or death:
