Hyundai Tucson (NX4) 2022-2026 Service Manual / Suspension System / Rear Suspension System / Components and Components Location

Hyundai Tucson: Rear Suspension System / Components and Components Location

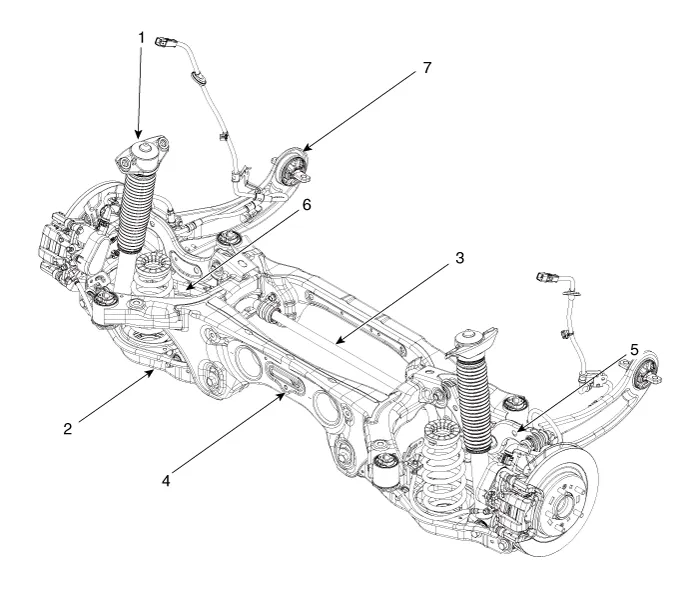

- Components [2WD]

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear sub frame
5. Rear upper arm
6. Rear assist arm
7. Trailing arm

[4WD]

1. Rear shock absorber
2. Rear lower arm
3. Rear stabilizer bar
4. Rear differential carrier
5. Rear sub frame
6. Rear driveshaft
7. Rear upper arm
8. Trailing arm

Rear Shock Absorber

- Components 1. Lock nut2. Insulator assembly 3. Dust cover 4. Rear shock absorber - Removal • When lifting a vehicle using a lift, be careful not to damage the lo ...
