Hyundai Tucson: Brake System / Brake Pad

- Replacement

• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the front wheel and tire (A) from front hub.

• Be careful not to damage the hub bolts when removing the front wheel and tire (A).

3.Up the brake caliper body (A) by loosening the guided rod bolt.

Tightening torque :37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft)

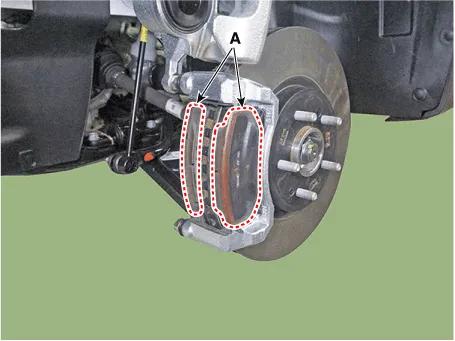

4.Remove the brake pad (A).

5.Replace the pad liner (A) with a new one.

• Brake apply a small amount of grease to the areas marked with "X" on both ends of the new product.(Be careful as excessive coating may cause noise due to contamination on the disk or friction material.)

6.Replace the brake pad (A) with a new one.

• When replacing the brake pads, replace both the brake pads (A), pad retainer (B), and pad shim (C).

7.Use a SST (09581-11000) when installing the brake caliper assembly.

8.Install the caliper body (A) then tighten the guide rod bolt.

Tightening torque :21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

9.Install the front wheel and tire (A).

Tightening torque :107.8 - 127.4 N.m (11.0 - 13.0 kgf.m, 79.5 - 94.0 lb-ft)

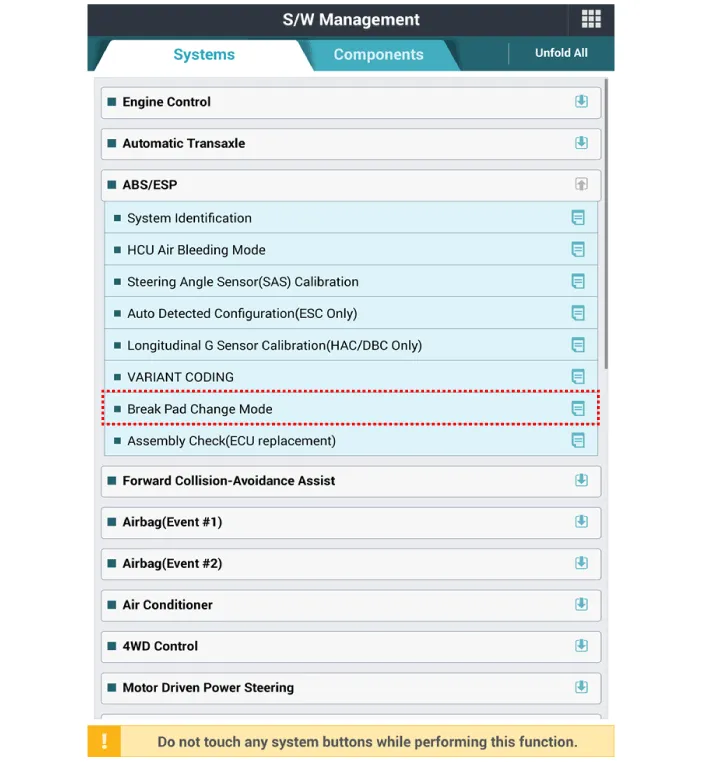

1.After installing the rear caliper, perform “Brake Pad Replacement Mode” using the self-diagnosis. [EPB Apply]

2.Select C2 (Release) on the screen below.

3.After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake. [EPB None Apply]

4.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

5.Remove the rear wheel and tire (A) from the rear hub.

• Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

6.Disconnect the EPB connector or parking brake cable.

• EPB Apply : Disconnect the EPB connector (A).

• EPB None Apply : Remove the parking brake cable (A), after removing the clip.

7.Remove the guide rod bolt and then pivot the caliper body (A) up out of the way.

8.Remove the brake pad (A).

9.Replace the pad liner (A) with a new one.

10.Replace the brake pad (A) with a new one.

• When installing, use a new one pad retainer (A), brake pad (B).

11.Rotate the caliper piston and push the direction of the arrow.

12.Install the caliper body (A) then tighten the guide rod bolt.

Tightening torque :21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb - ft)

13.Install the rear wheel and tire (A).

Tightening torque :107.9 - 127.5 N.m (11.0 - 13.0 kgf.m 79.6 - 94.0 lb-ft)

• Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

14.After installing the rear caliper, perform “Brake Pad Replacement Mode” using the self-diagnosis. [EPB Apply]

15. Select C1 (Apply) on the screen below.

• After replacing the brake pad is complete, make sure to repeat engagement/disengagement 3 times at "Brake Pad Replacement Mode".

16.After replacing the brake pad, make sure that the caliper is installed correctly by performing "Check assembling (ECU replaced)" from the optional function.

17.After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake. [EPB None Apply]

18.Apply the parking brake several times and check for normal operation.

19.Check if the parking brake is operating normally.

1.Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

Front brake disc thickness Pad thickness- Standard : 10 mm (0.39 in)- Service Limit : (0.07 in)

2.Check that grease is applied, to sliding contact points and the pad and backing metal for damage.

1.Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

Pad thicknessStandard value : 10.0 mm (0.39 in)Service limit : 2.0 mm (0.08 in)

2.Check the damage of pad, backing metal and contamination with grease.
